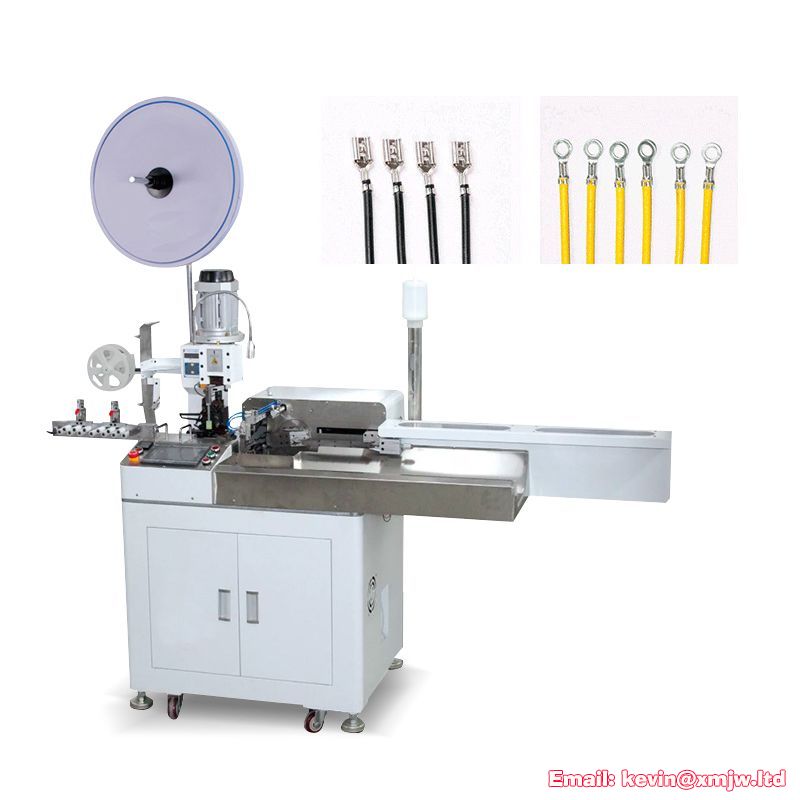

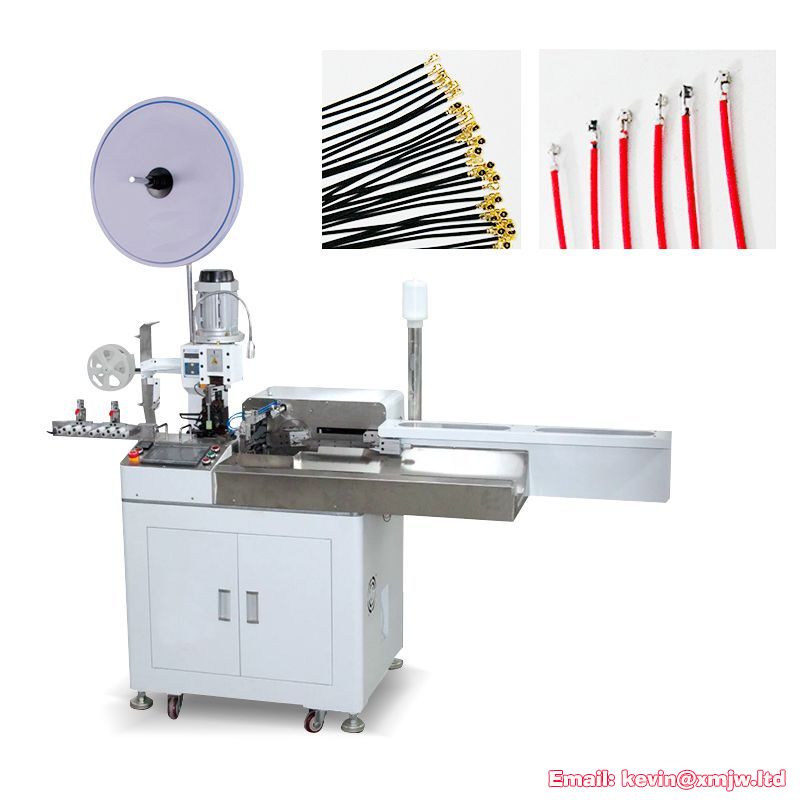

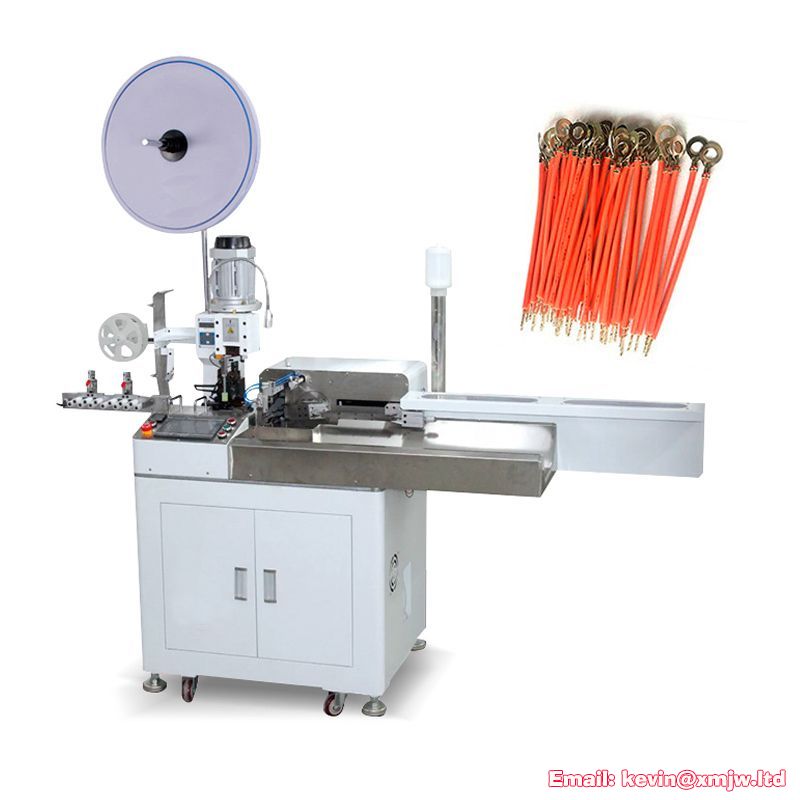

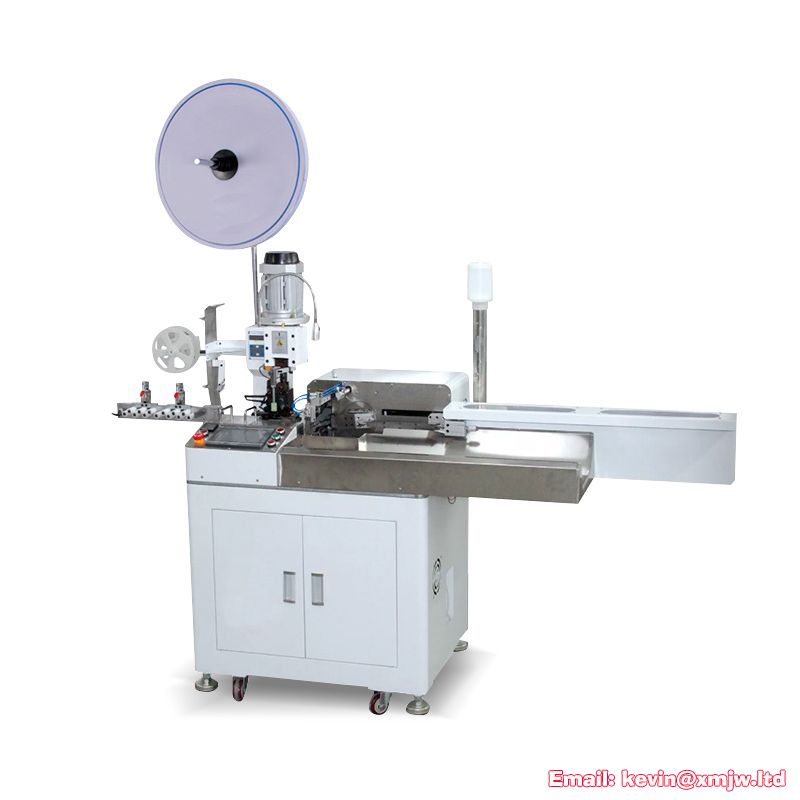

TR-DD02 Automatic Wire Cutting Stripping Twisting Terminal Crimping Machine Five-wire End Single-head Tin Dipping Machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230821344104
- Availability: 500

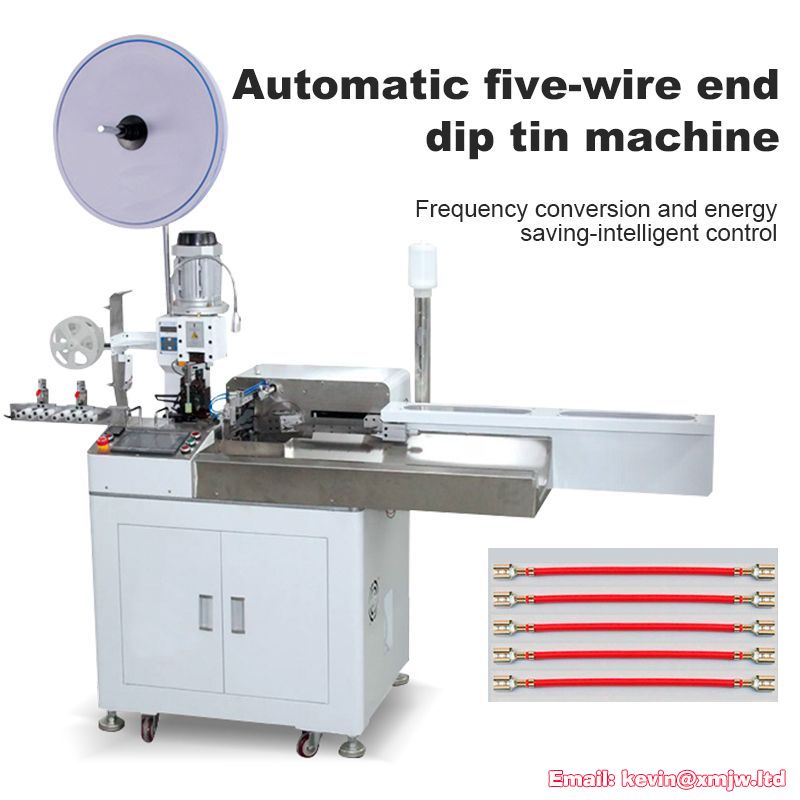

TR-DD02 Automatic Five-wire End Single-head Tin Dipping Machine Wire Cutting Stripping Twisting Terminal Crimping Machine
1. The fully automatic single-end tinning machine can be used for multiple purposes, and can realize functions such as wire cutting, single-end tinning, double-end stripping, single-end half-stripping, single-end twisting, and single-end tinning.2. The production wire range of the end tin dipping machine is wide, from AWG16 to AWG32, and can process 5 lines at the same time, which greatly improves the production efficiency and is very practical;3. Fully automatic single-head tin dipping machine computer knife adjustment, no need for gaskets, pneumatic components (SMC)4. The tin furnace part of the tin dipping machine is designed with an automatic tin scraping device, so that there is no oxidized tin scrap on the surface of the tin dipping part and the cleanliness of the table is guaranteed.5. The clamping position of the fully automatic single-head tinning machine and the tinning end point can be adjusted to about 10mm, so as to control the bending of the tinning end of the wire and make the dipping position more accurate;
Product Description
Product Name | TR-DD02 Terminal Crimping Machine |
Stripping length | 1-10mm |
Cut precision | ±(0.5+0.002*L) mm |
Cutting length | 30mm-1000mm (can be lengthened) |
Applicable wire range | AWG16-AWG32 |
Crimping force | 2.0T |
Speed | 5500pcs/hour |
Air pressure | 0.5-0.7MPA |
Cutting accuracy | 0.2±0.02*L |
Power | 220V/50HZ |
Power cord plug | European, USA, Chinese plug |
Display language | Chinese/English |
Weight | 450Kg |
Dimension | 1210*770*1370（mm） |
| Application | Cut;Strip and Crimp |
| Brand Name | Turing |
| Certification | CE Certificate |
| Cut length | 30-1000mm(Extension available) |
| Electrical Connections | 110V/220V 50-60Hz |
| Keywords | Automatic Crimping Machine |
| Model Number | TR-DD02 |
| Place of Origin | Guangdong;China |
| Product name | TR-DD02 Fully Automatic Crimping And Tinning Wire Machine |
| Speed | 5500pcs/hour |
| Stripped wire length | 1-10mm |
| Usage | Multifunctional;Cut;Strip and Crimp |
| Wire Range | AWG16-AWG32 |
