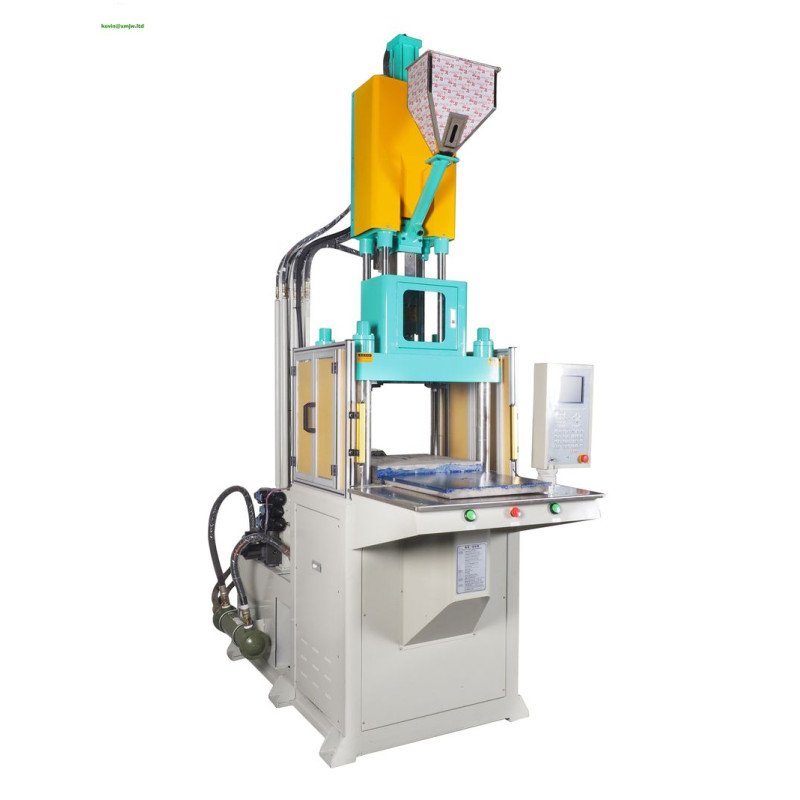

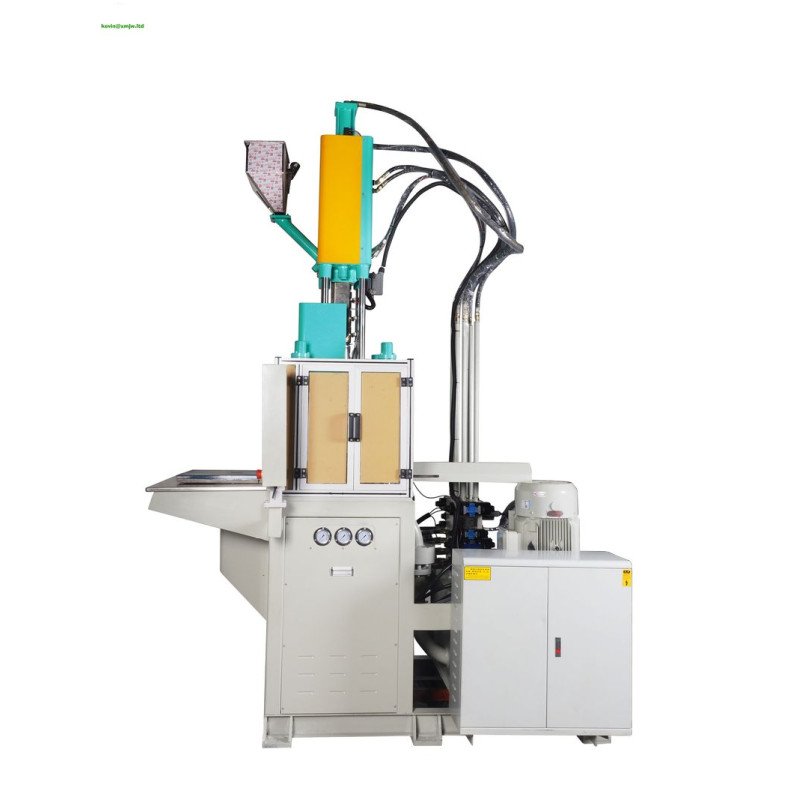

Bottles Cups Tubes Making Machine Plastic Products Injection Molding Machine

  • Inquiry Email: sales@cablecutting.net
  • Product Code: CN230813421004
  • Availability: 500

Product Overview

Detail Images


PRODUCT SPECIFICATIONS

Main Features

1.In ST(standard) machine installs single sliding mold. After operates the mold to complete, the stamping die automatically slips to the operator front, is advantageous for the operation,the security is high also the end product goes against also completes in exterior.2.The multistage temperature control,the multistage projects the pressure with to project the speed, projects the back pressure not to have the section adjustment, suits each kind of precise revertex components taking shape. (Engineering plastics).3.The screw rod L/D ratio is big,is suitable for the special engineering plastics. 4.May expand the computer formula and the automation takes out inserts the equipment segment,may achieve the entire automation the design.5.Closed mold the straight pressure formula under lock mold cylinder design can fast drop gathers the mold and the idling speed lowly press fits the mold, to the mold service life,can be lasting.6.Projects uses the two-cylinder balance -like to project the system, projects steadily is Powerful.7.Electrically controlled may move the gang to bond the demonstration, the convenient gang bonds removes with the service.8. Servo motor series can be selected according to customer needs.9.Screw and clamping force force can be selected to use.
MODEL
JY-1200ST-D





ITEM
UNIT







    INJECTION              UNIT
Screw Barrel Diameter
mm
40
40
45

Injection Pressure
kg/cm²
1837
1452
1176

Max. Shot Weight
gram
213.6
270
213.6

Max. Shot Rate
cm³/sec
109.2
138.3
107.7

Screw Barrel Route
mm
200



Screw Barrel Rotary Speed
rpm
0-250
0-200


Number of Temperature Control

4







    CLAMPING              UNIT
Clamping Force
tons
120



Slide Size
mm
560*600



Distance Between Tie Bere
mm
760*420



Min. Mold Height
mm
280/380



Opening Stroke
mm
280



Max. Opening Mold Distance
mm
560/660



Ejetor Force
tons
4.6



Ejetor Stoke
mm
100





      OTHERS
Machine Weight
tons
6



Machine Dimensions(LxWxH)
meter
2.85*2*3.8/4.6



System Pressure
tons
13.7



Oil Tank Capacity
L
340



Electric Power
KW
15



Heater Power
KW
10.7


SIMILAR PRODUCTS
Phone cases and toys


Applicable Industries Hotels;Building Material Shops;Manufacturing Plant;Restaurant;Home Use;Construction works;Energy & Mining
Brand Name JIEYANG
Condition New
Core Components Bearing;Motor;Pump;Gear;PLC;Other;Pressure vessel;Engine;Gearbox;Screw;Other
Distance between Tie Bars 760x420mm
Ejector Force(kN) 45 kN
Ejector Number 1
Ejector Stroke(mm) 100 mm
Injection Rate (g/s) 170.7 g/s
Injection speed 87mm/s
Injection Stroke 180mm
Injection Weight (g) 213.6 g
Key Selling Points Multifunctional
Machine Type Hydraulic
Machinery Test Report Provided
Marketing Type Hot Product
Max Injection Pressure 115.2Mpa
Max Opening 560/660mm
Mold Height(mm) 280 - 380 mm
Nozzle Out From Platens ≥45mm
Number of Temperature Control 3+1
Oil Tank Capacity 340L
Open Stroke(mm) 280 mm
Place of Origin Guangdong;China
Plastic Processed PP;PC;ABS;PET;PVC;FRPP/PVC;PPR;EVA;HDPE;MLLDPE;EPS;PA;Polystyrene;PE;LDPE;EVOH;HDPE/PP;ABS/PP;PE/PP;Polylactic Acid
Power (kW) 11 kW
Product name JIEYANG
Screw diameter (mm) 50 mm
Screw Speed (rpm) 0 - 250 rpm
Showroom Location Viet Nam
Slide Size 560*600mm
Style VERTICAL
System Pressure 13.7Mpa
Theoretical Shot Volume(cm³) 353 cm³
Type Tube Shoulder Injection
Video outgoing-inspection Provided
Warranty 1 Year
Warranty of core components 1 Year
Weight (KG) 6000 kg
