2：Lower Heating,Large Temperature Range; Small Performance Drift, Stable Working.
3：High Electro-acoustic Conversion Efficiency And Large Amplitude.
4：Good Material And Long Lifetime

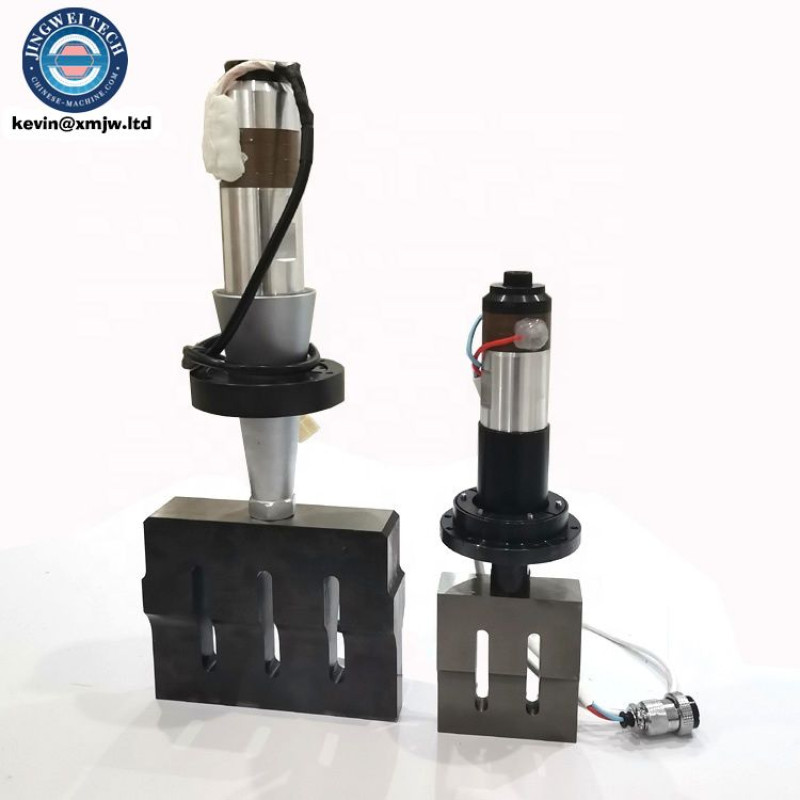

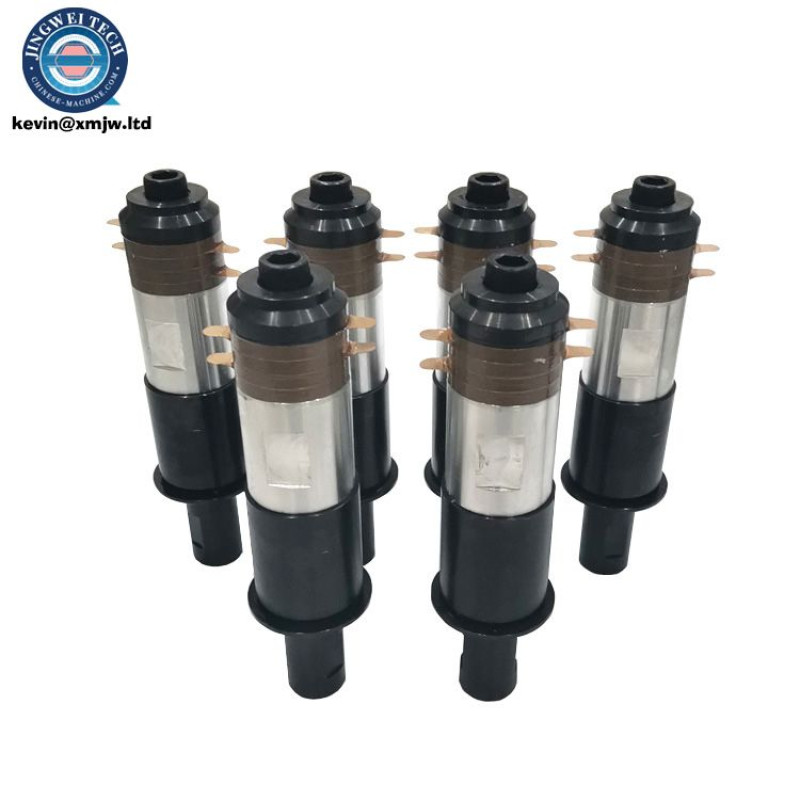

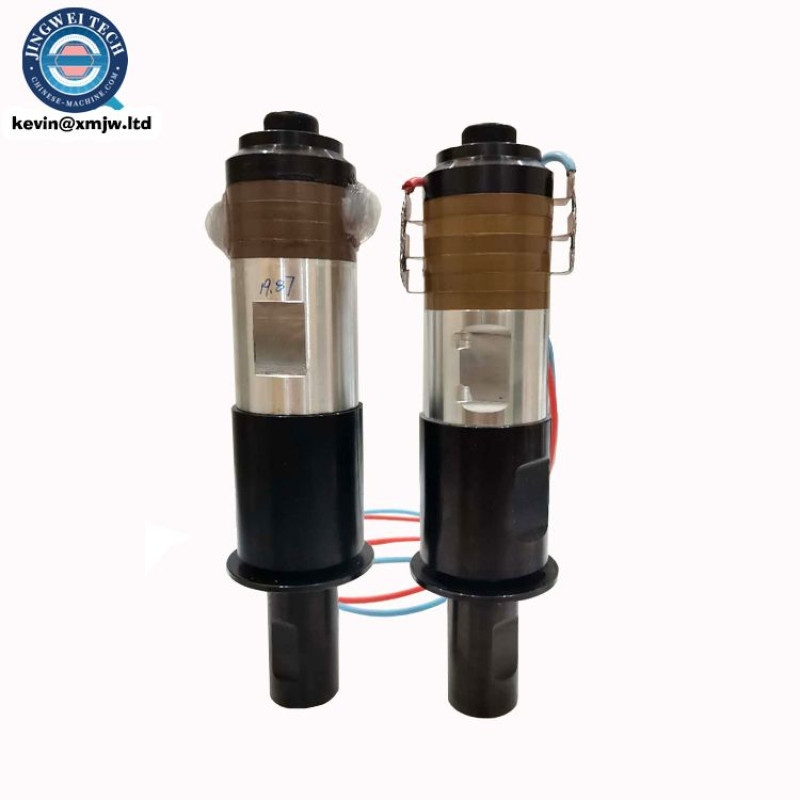

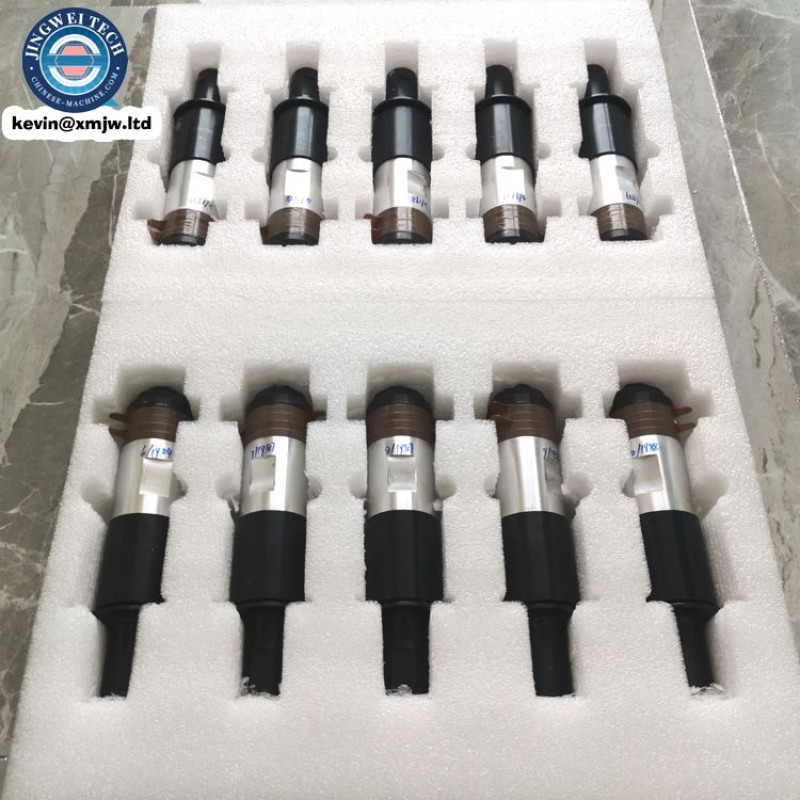

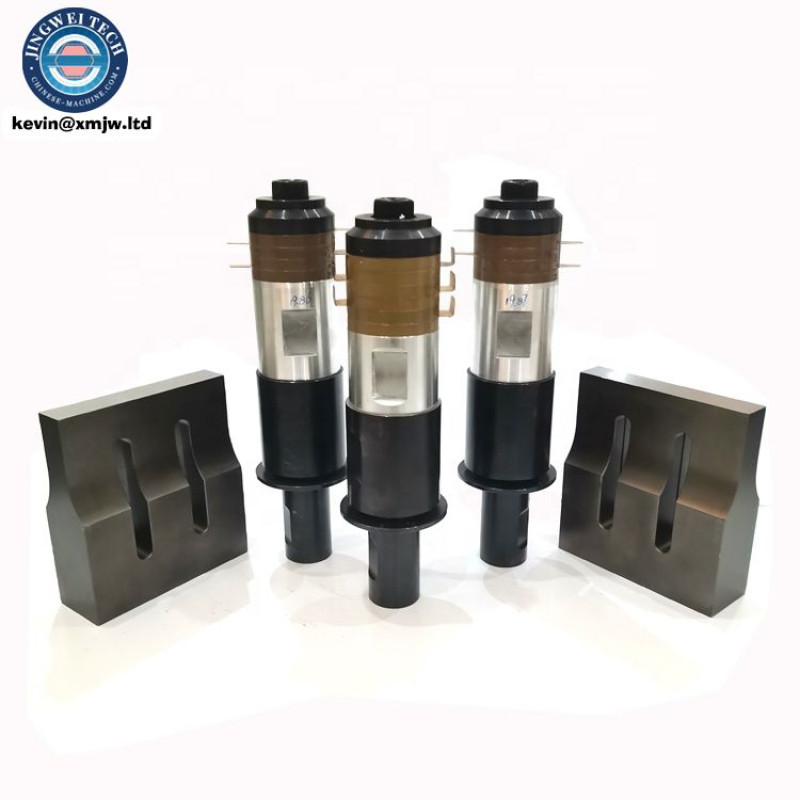

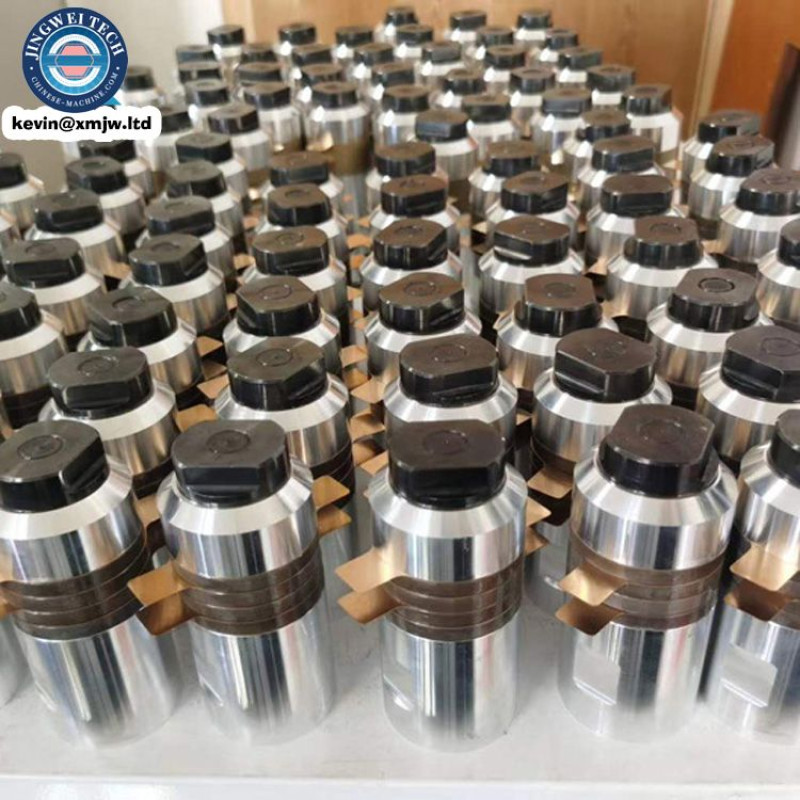

20khz 2000W Ultrasonic Transducer Welding Plastic
Price in reward points: 420
- Brand: unbranded
- Product Code: CN230812758194
- Availability: 500
Products Description
Ultrasonic Welding Transducer is the core component of the whole ultrasonic system, Responsible for high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode . When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Ultrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.
Applications:
widely used in ultrasonic welding machine. It's the key for welding various plastic products, metal products or fabric products. Meanwhile, Ultrasonic Welding Machine is an ultrasonic welder designed for welding various plastics (ABS, PVC, PP, PE, PC, PS, HDPE, LDPE, PET, PMMA, Acetal, etc.) and fabrics (Polyester, nonwoven, Nylon, etc.).
widely used in ultrasonic welding machine. It's the key for welding various plastic products, metal products or fabric products. Meanwhile, Ultrasonic Welding Machine is an ultrasonic welder designed for welding various plastics (ABS, PVC, PP, PE, PC, PS, HDPE, LDPE, PET, PMMA, Acetal, etc.) and fabrics (Polyester, nonwoven, Nylon, etc.).
Product Featur
1: Low Resonance Impedance High Mechanicai Quality Factor.
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Machinery Repair Shops;Manufacturing Plant;Food & Beverage Factory;Farms;Restaurant;Home Use;Retail;Food Shop;Printing Shops;Construction works;Energy & Mining;Food & Beverage Shops;Other;Advertising Company |
| Application | Ultrasonic Mask Welding Transducer |
| Condition | New |
| Core Components | Piezoelectric ceramic wafer |
| Frequency | 20KHZ |
| Key Selling Points | Long Service Life |
| lnput power | 220V |
| Machine Type | Welding robot |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2022 |
| Material | Stainless steel |
| Piezo Size | 50*20*6 P8 |
| Place of Origin | Beijing;China |
| Product name | ultrasonic welding transducer |
| Quantity of Ceramic | 4pcs |
| Showroom Location | Viet Nam;India;Russia |
| Video outgoing-inspection | Provided |
| Warranty | 4 years |
| Warranty of core components | 1 Year |
| Weight | 2.55kg |
| Weight (KG) | 3 |
