2：Lower Heating,Large Temperature Range; Small Performance Drift, Stable Working.
3：High Electro-acoustic Conversion Efficiency And Large Amplitude.
4：Good Material And Long Lifetime
Ultrasonic Welding Machine 20K 15K Ultrasonic Transducer / Welding Vibrator
Price in reward points: 360
- Brand: QXULTRASONIC
- Product Code: CN230812629646
- Availability: 500
Products Description
Ultrasonic Welding Transducer is the core component of the whole ultrasonic system, Responsible for high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode . When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Ultrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer and ultrasonic die, with the three parts is a complete ultrasound system.
Applications:
widely used in ultrasonic welding machine. It's the key for welding various plastic products, metal products or fabric products. Meanwhile, Ultrasonic Welding Machine is an ultrasonic welder designed for welding various plastics (ABS, PVC, PP, PE, PC, PS, HDPE, LDPE, PET, PMMA, Acetal, etc.) and fabrics (Polyester, nonwoven, Nylon, etc.).
widely used in ultrasonic welding machine. It's the key for welding various plastic products, metal products or fabric products. Meanwhile, Ultrasonic Welding Machine is an ultrasonic welder designed for welding various plastics (ABS, PVC, PP, PE, PC, PS, HDPE, LDPE, PET, PMMA, Acetal, etc.) and fabrics (Polyester, nonwoven, Nylon, etc.).
Product Featur
1: Low Resonance Impedance High Mechanicai Quality Factor.

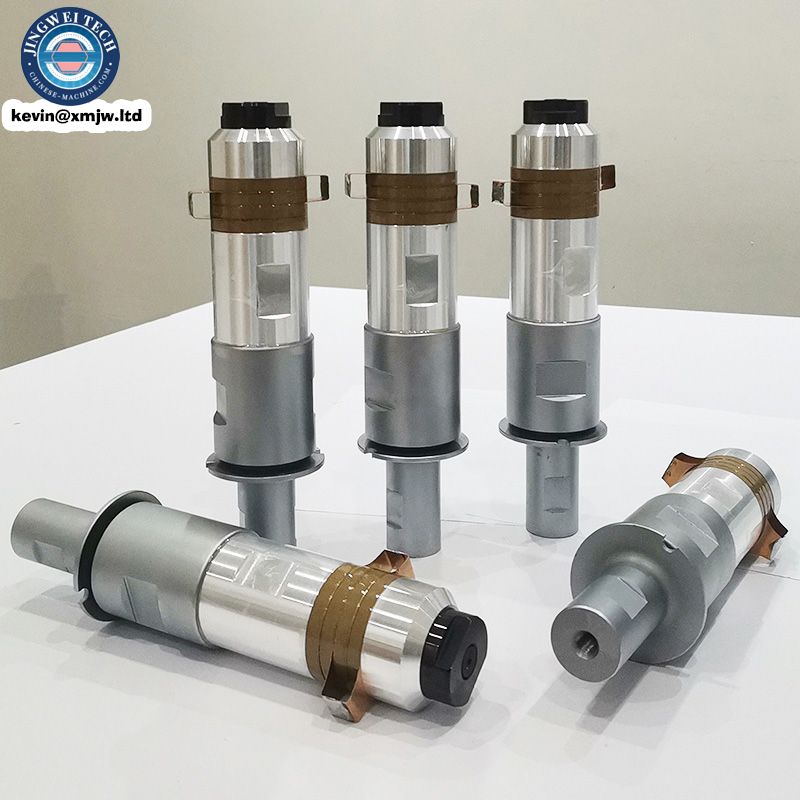

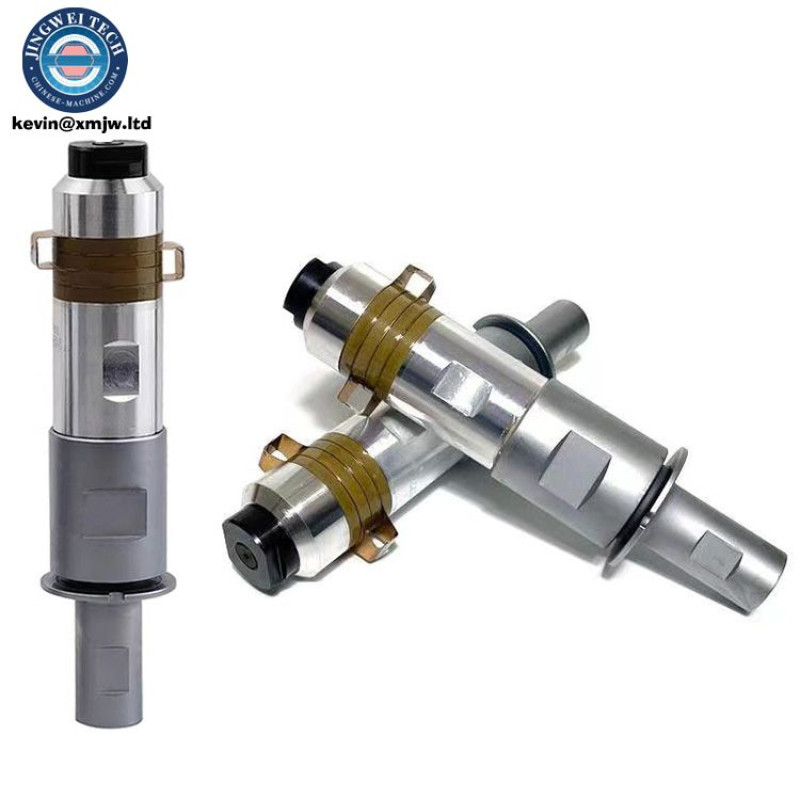

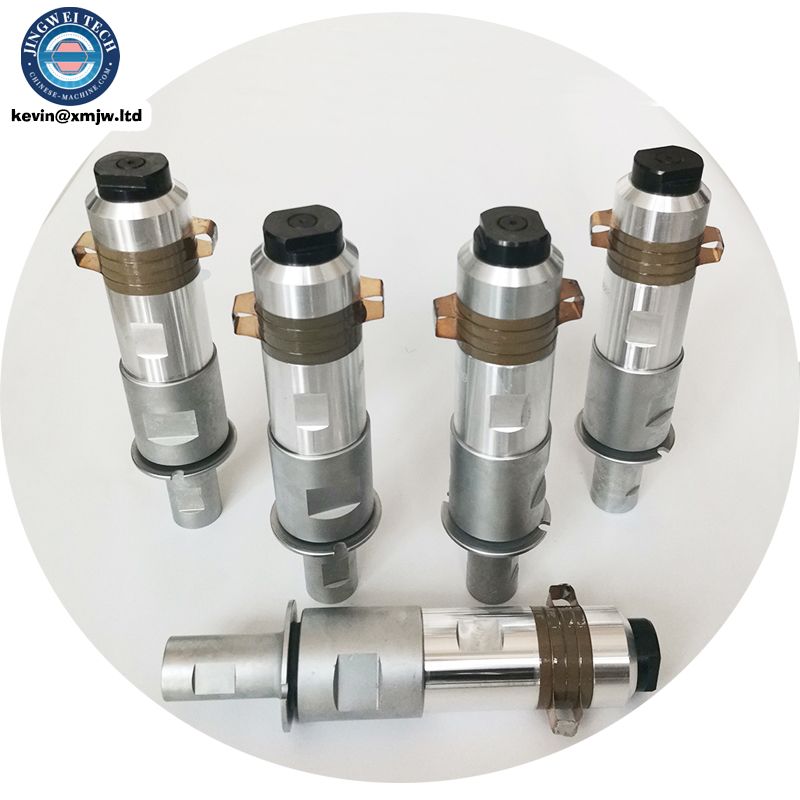

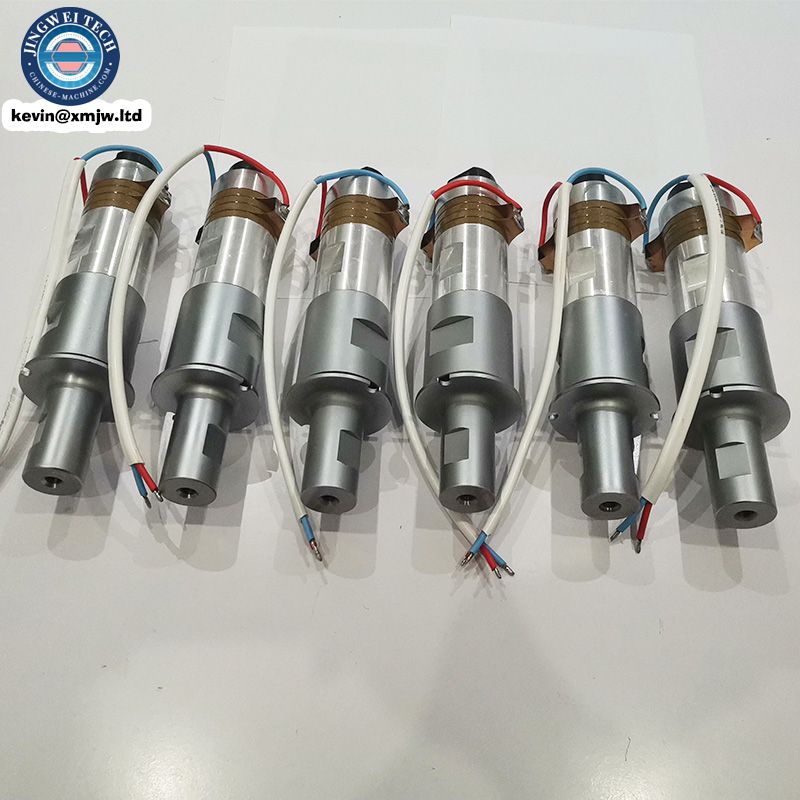

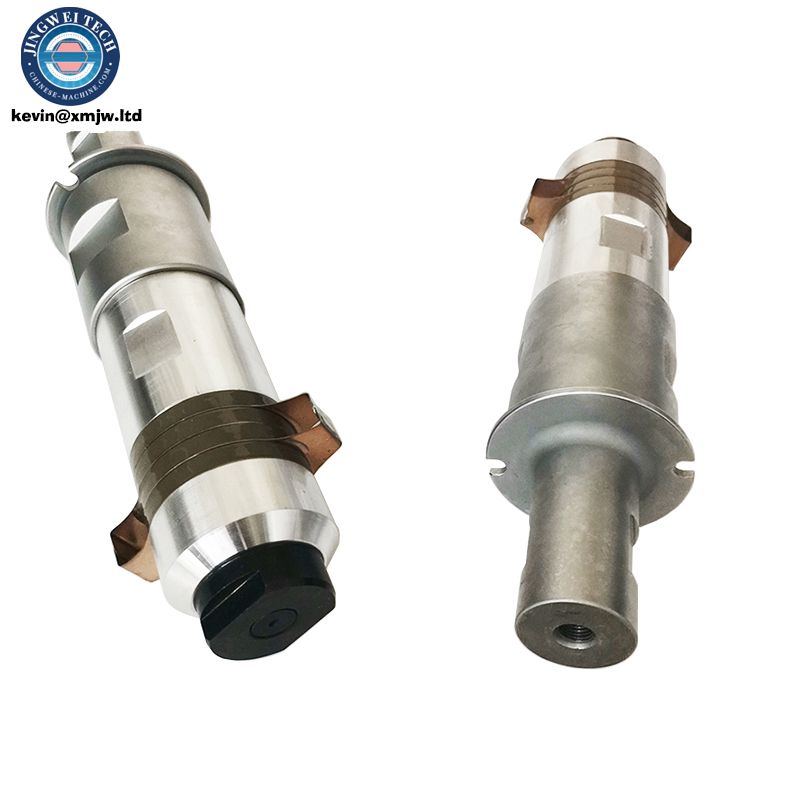

Product Picture
& If you are interested in our product,
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
Product Paramenters
Instruction of use:
& The frequencies of the ultrasonic transducer, booster and horn must be matched with each other.
& The frequencies of horn and booster should be lower than the frequency of transducer.
& connection surface must ensure vertical and flatness, and the connection torque must be appropriate.
& The operating temperature of the ultrasonic transducer should be lower than 60 °C, and the input power should be lower than the rated power.
& The frequencies of horn and booster should be lower than the frequency of transducer.
& connection surface must ensure vertical and flatness, and the connection torque must be appropriate.
& The operating temperature of the ultrasonic transducer should be lower than 60 °C, and the input power should be lower than the rated power.
Product Usage Scenarios
Recommend Products
15khz Ultrasonic Generator

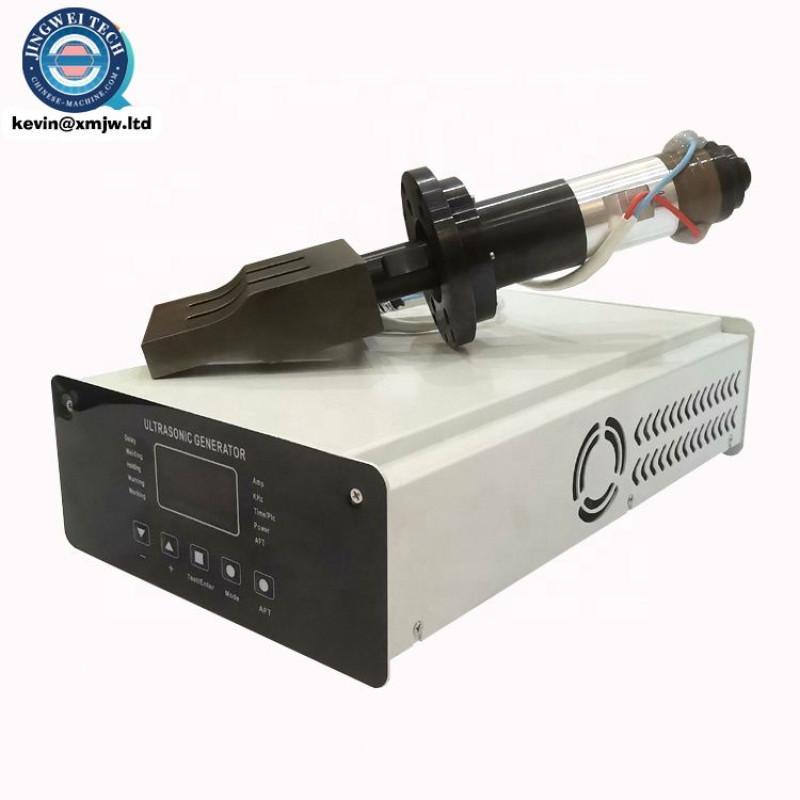

Ultrasonic Welding Machine
| After-sales Service Provided | Free spare parts;Online support;Video technical support |
| Applicable Industries | Hotels;Garment Shops;Building Material Shops;Machinery Repair Shops;Manufacturing Plant;Food & Beverage Factory;Farms;Restaurant;Home Use;Retail;Food Shop;Construction works;Energy & Mining;Food & Beverage Shops;Advertising Company |
| Application | Ultrasonic Mask Welding Transducer |
| Brand Name | QXULTRASONIC |
| Condition | New |
| Dimensions | 250/51/31 customizable |
| Frequency | 2000(HZ);20KHZ |
| Key Selling Points | Good material and long lifetime |
| lnput power | 220V |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product |
| Material | Stainless steel |
| Piezo Size | 50*20*6 P8 |
| Place of Origin | Beijing;China |
| Power (kW) | 2000W |
| Product name | ultrasonic welding transducer |
| Quantity of Ceramic | 4pcs |
| Usage | ultrasonic welding |
| Video outgoing-inspection | Provided |
| Voltage | 220V |
| Warranty | 3 months |
| Weight | 2.55kg |
| Weight (KG) | 2.55 KG |
| Welding Area | 150 |
Tags: Ultrasonic Welding Machine, 20K 15K Ultrasonic Transducer / Welding Vibrator
