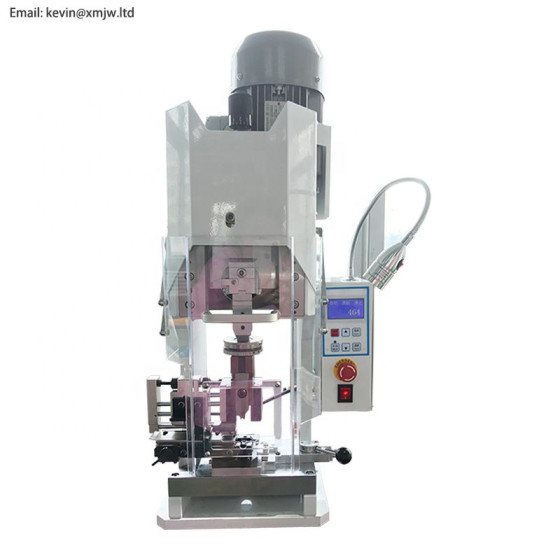

X-CM1001C Automatic JST terminal crimping machine, Copper cable wire rope end crimping machine
- Inquiry Email: sales@cablecutting.net
- Product Code: CN230808709408
- Availability: 500
Product Description
Feature
The semi-auto mute terminal crimping machine is suitable for crimping computer terminal, DC terminal, AC terminal, single grain terminal, and joint terminal. It is compatible with vertical and horizontal molds, and one machine is suitable for all terminal types by replacing the crimping molds.
This series semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator.
Suitable for crimping computer terminals, DC terminal, AC terminal, single grain terminal, joint terminal etc.
1. Built-in frequency converter, high production rate and low noise
2. Crimping dies designed according to your terminal
3. Production rate is adjustable
4. Support manual mode and automatic mode, easy to change
5. LED display shows crimped terminals quantity
This series semi-automatic terminal crimping machines are suitable for various terminals, very easy to change the applicator.
Suitable for crimping computer terminals, DC terminal, AC terminal, single grain terminal, joint terminal etc.
1. Built-in frequency converter, high production rate and low noise
2. Crimping dies designed according to your terminal
3. Production rate is adjustable
4. Support manual mode and automatic mode, easy to change
5. LED display shows crimped terminals quantity
Specification
Model | X-CM101C-15 | X-CM101-30 | X-CM101C-40 | X-CM101C-80 | |||
Output | 2.0Ton | 3.0Ton | 4.0Ton | 8.0Ton | |||
Application | Computer terminal, DC terminal, AC terminal, single grain terminal, joint terminal | ||||||
Nominal Pressure | 2000KG | 3000KG | 4000KG | 8000KG | |||
Frequency Power | 750W | 1000W | 2200W | 3000W | |||
Motor Power | 750W | 1000W | 2200W | 3000W | |||
Stroke | 40mm Stroke | ||||||
Power Supply | 220V/50Hz, 110V/60Hz | ||||||
| Applicator | All kinds of applicator |
| Brand Name | X cable Tech |
| Crimping force | 1.5T(1T/2T/3T/4T/8T) |
| Dimension | 410*410*350mm |
| Function | Crimping Terminal |
| Model Number | X-CM101C |
| Packing | Plywood |
| Place of Origin | Guangdong;China |
| Power | 500W |
| Stroke | 40 mm |
| Usage | crimping |
| Voltage | 110V/220V |
| Warranty | 1 Year |
| Weight | 40kg |
